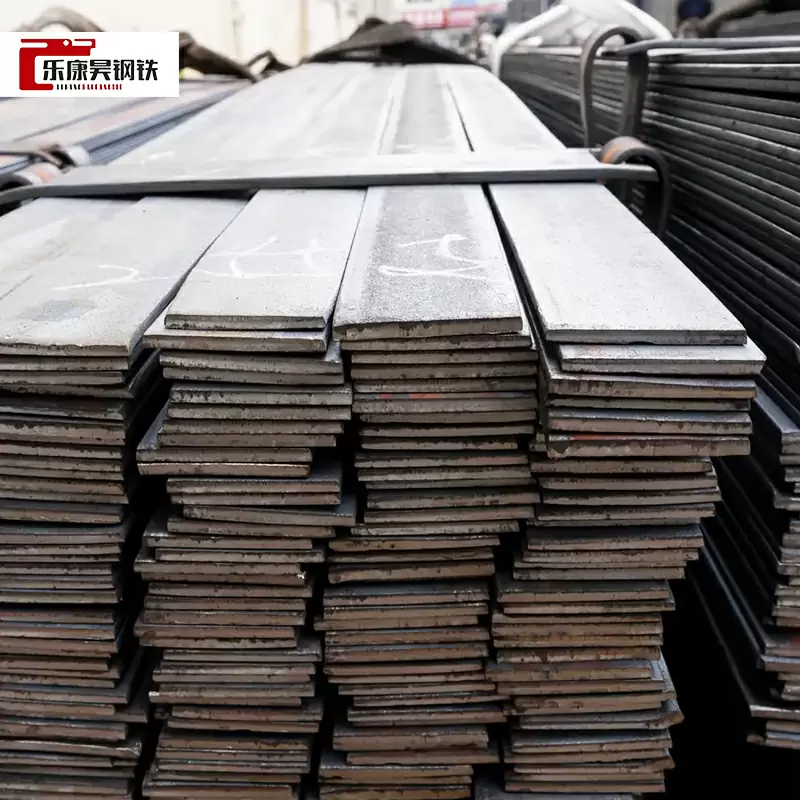

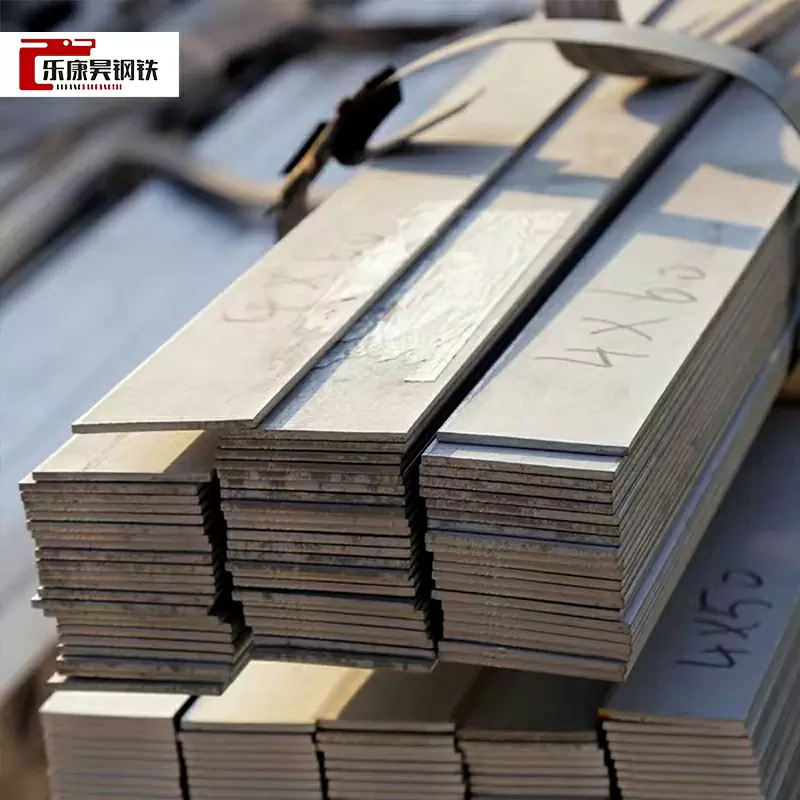

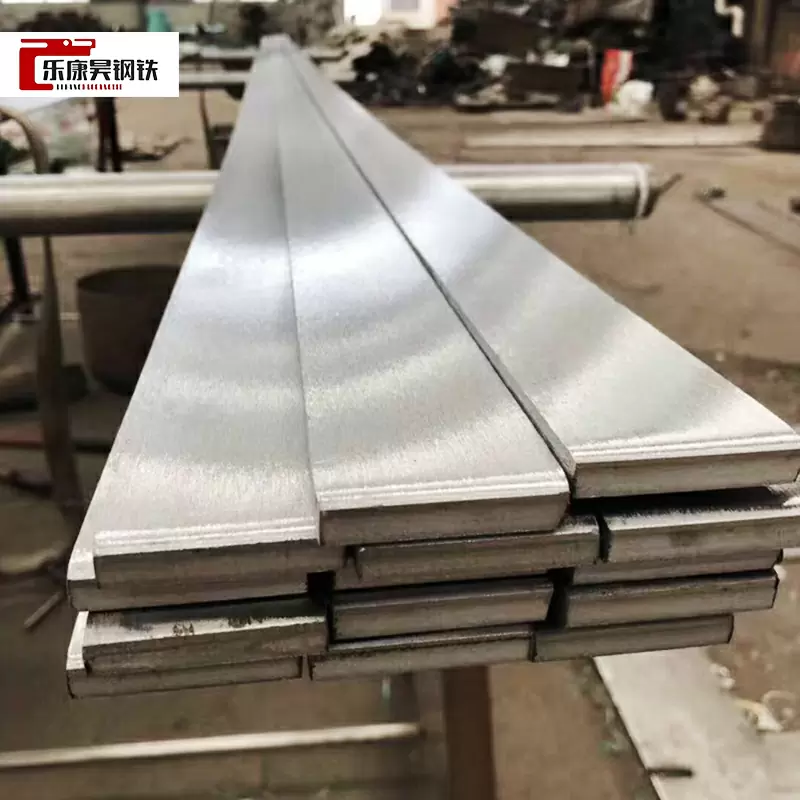

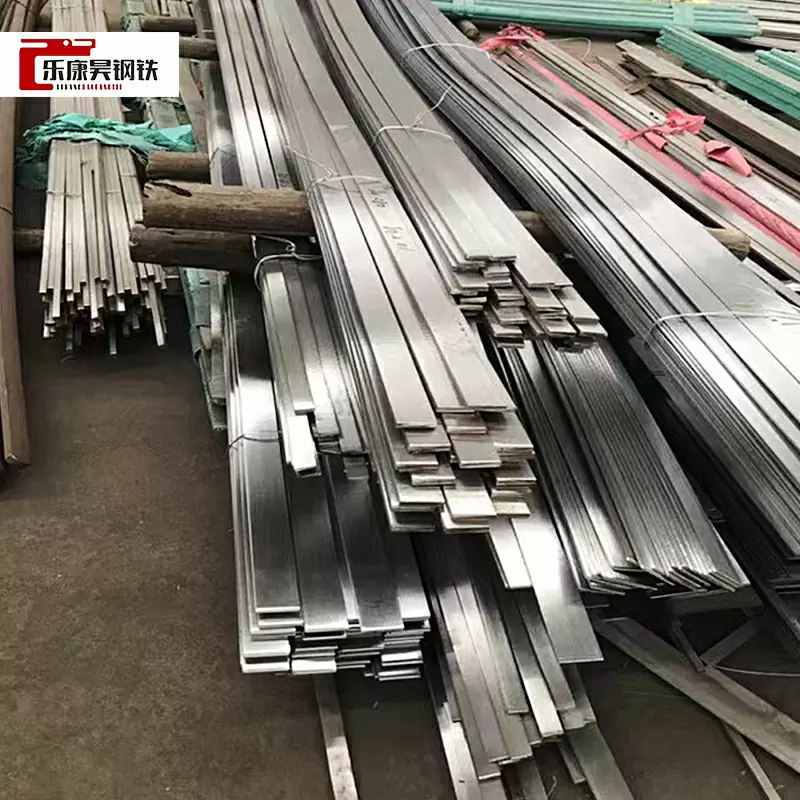

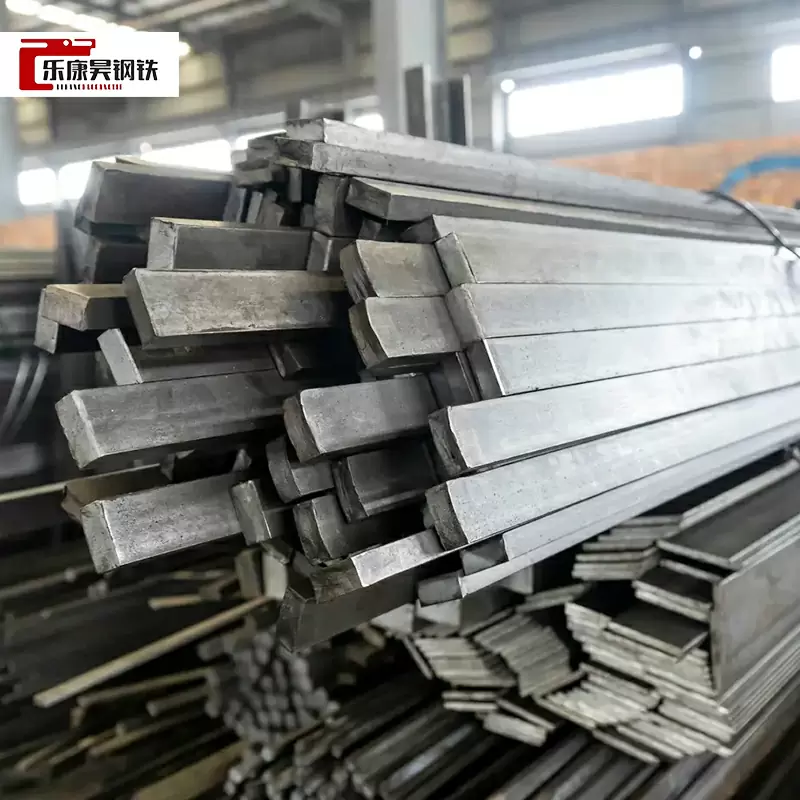

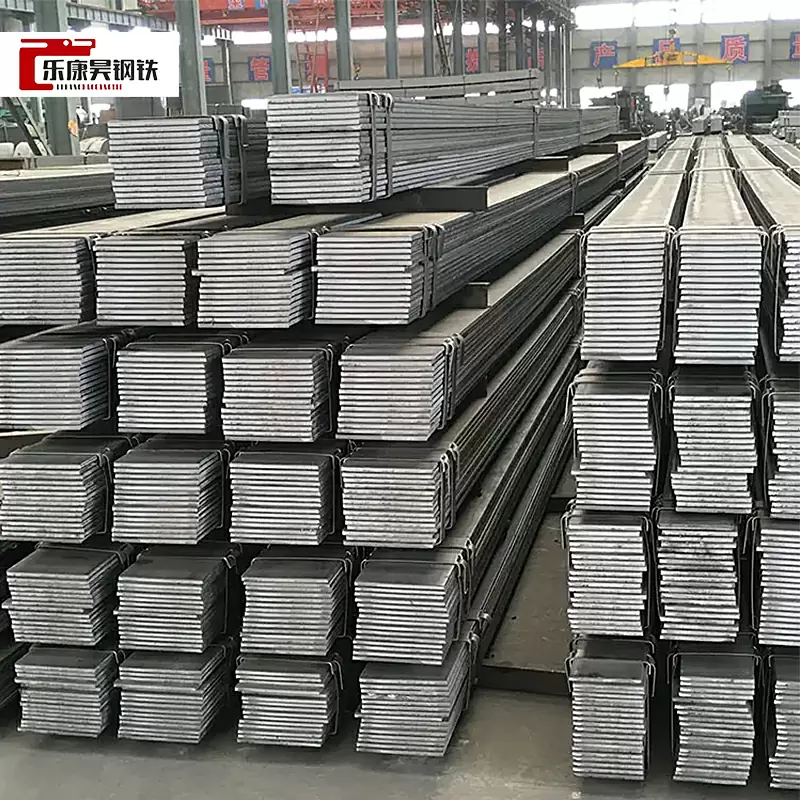

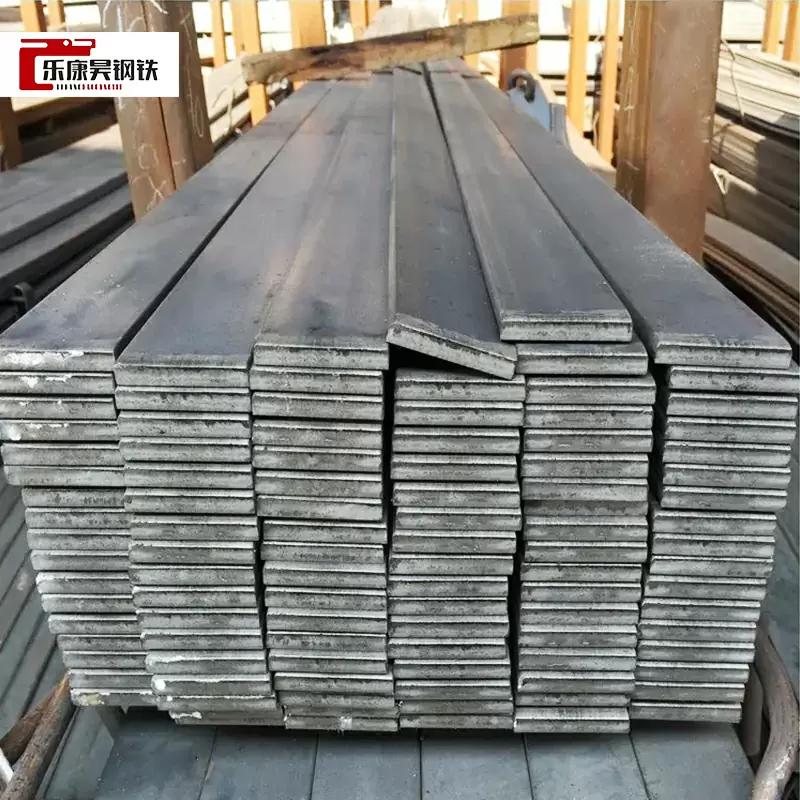

Carbon Steel Flat Steel

Email : steel@lkhsteel-export.com

Whatsapp : +86 13065062808

The company has sufficient inventory and can be picked up at any time.

Contact Us

Chat Now

Product Description

Flat Steel Bar Dimension
Width（MM）	Thickness (MM)
	4	5	6	7	8	9	10	11	12	14	16	18	20	22	25	28	30
							Weight（kg/m)
12	0.38	0.47	0.57	0.66	0.75
14	0.44	0.55	0.66	0.77	0.88
16	0.5	0.63	0.75	0.88	1	1.15	1.26
18	0.57	0.71	0.85	0.99	1.13	1.27	1.41
20	0.63	0.79	0.94	1.1	1.26	1.41	1.57	1.73	1.88
22	0.69	0.86	1.04	1.21	1.38	1.55	1.73	1.9	2.07
25	0.79	0.98	1.18	1.37	1.57	1.77	1.96	2.16	2.36	2.75	3.14
28	0.88	1.1	1.32	1.54	1.76	1.98	2.2	2.42	2.64	3.08	3.53
30	0.94	1.18	1.41	1.65	1.88	2.12	2.36	2.59	2.83	3.36	3.77	4.24	4.71
32	1.01	1.25	1.5	1.76	2.01	2.26	2.54	2.76	3.01	3.51	4.02	4.52	5.02
3S	1.1	1.37	1.65	1.92	2.2		2.75		3.3	3.95
36	1.13	1.41	1.69	1.97	2.26	2.51	2.82	3.11	3.39	3.95	4.52	5.09	5.65
40	1.26	1.57	1.88	2.2	2.51	283	3.14	3.45	3.77	4.4	5.02	5.65	6.28	6.91	7.85	8.79
45	1.41	1.77	2.12	2.47	2.83	3.18	3.53	3.89	2.24	4.95	5.65	6.36	7.07	7.77	8.83	9.89	10.6
50	1.57	1.96	2.36	2.75	3.14	3.53	3.93	4.32	4.71	5.5	6.28	7.07	7.85	8.64	9.81	10.99	11.78
55	1.73	2.16	2.59	3.02	3.45		4.32		5.19	6.05
56	1.76	2.2	2.64	3.08	3.52	3.95	4.39	4.83	5.27	6.15	7.3	7.91	8.79	9.67	10.99	12.31	13.19
60	1.88	2.36	2.83	3.3	3.77	4.24	4.71	5.18	5.65	6.59	7.54	8.48	9.42	10.36	11.78	13.19	14.13
63	1.98	2.47	2.97	3.46	3.95	4.45	4.94	5.44	5.93	6.92	7.91	8.9	9.69	10.88	12.36	13.85	14.34
70	2.2	2.55	3.3	3.85	4.4	4.95	5.5	6.04	6.59	7.69	8.79	8.89	10.9	11.23	13.74	14.29	16.49
75	2.36	2.94	3.53	4.12	4.71	5.3	5.89	6.48	7.07	8.24	9.42	10.6	11.7	12.09	14.72	15.39	17.66
80	2.51	3.14	3.77	4.4	5.02	5.65	6.28	6.91	7.54	8.79	10.05	11.3	12.56	13.82	15.7	16.49	18.84
85	2.67	3.34	4	4.67	5.34	6.01	6.67	7.34	8.01	9.34	10.68	12.01	13.35	14.68	16.68	17.58	20.02
90	2.83	3.53	4.24	4.95	5.56	6.36	7.07	7.77	8.48	9.89	11.3	12.72	14.13	15.54	17.65	18.68	21.2
95	2.98	3.73	4.47	5.22	5.97	6.71	7.46	8.2	8.95	10.44	11.93	13.42	14.92	16.41	18.84	19.78	22.37
100	3.14	3.93	4.71	5.5	6.28	7.07	7.85	8.64	9.42	10.99	12.56	14.13	15.7	17.27	19.63	20.88	23.55
105	3.3	4.12	4.95	5.77	6.59	7.42	8.24	9.07	9.89	11.54	13.19	14.84	16.49	18.18	20.61	21.98	24.73
110	3.45	4.32	5.18	6.04	6.91	7.77	8.64	9.5	10.36	12.09	13.82	15.54	17.27	19	21.59	23.08	25.91
120	3.77	4.71	5.65	6.59	7.54	8.48	9.42	10.36	11.3	13.19	15.07	16.96	18.84	20.72	23.55	24.18	28.26
125	3.93	4.91	5.89	6.67	7.85	8.83	9.81	10.76	11.78	13.74	15.7	17.66	19.63	21.5	24.53	26.38	29.44
130	4.08	5.1	6.12	7.14	6.16	9.18	10.21	11.23	12.25	14.29	16.33	18.87	20.41	22.45	25.51	27.48	30.62
140	4.4	5.5	6.59	7.69	8.79	9.89	10.99	12.09	13.19	15.39	17.58	19.78	21.98	24.18	27.48	28.57	32.97
150	4.71	5.89	7.07	8.24	9.42	10.6	11.78	12.95	14.13	16.49	18.84	21.2	23.55	25.91	29.44	30.77	35.33
160	5.02	6.28	7.54	8.79	10.05	11.3	12.56	13.82	15.07	17.58	20.1	22.61	25.12	27.63	31.4	32.97	37.63
170	5.34	6.67	8.01	9.34	10.68	12.01	13.35	14.68	16.01	18.68	21.35	24.02	26.09	29.36	33.36	35.17	40.04
180	5.65	7.07	8.48	9.89	11.3	12.72	14.13	15.54	16.96	19.78	22.61	25.43	28.26	31.09	35.33	37.37	42.39
190	5.97	7.46	8.95	10.44	11.93	13.42	14.92	16.41	17.9	20.88	23.86	26.85	29.83	32.81	37.29	41.76	44.75
200	6.28	7.85	9.42	10.99	12.56	14.13	15.7	17.27	18.84	21.98	25.12	28.26	31.4	34.54	39.25	43.96	47.1
