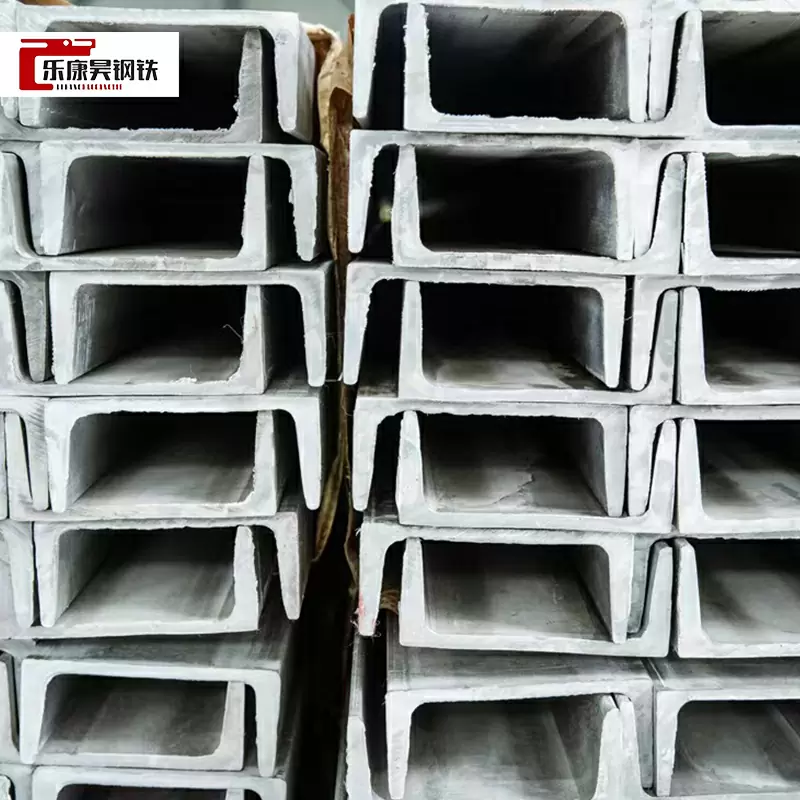

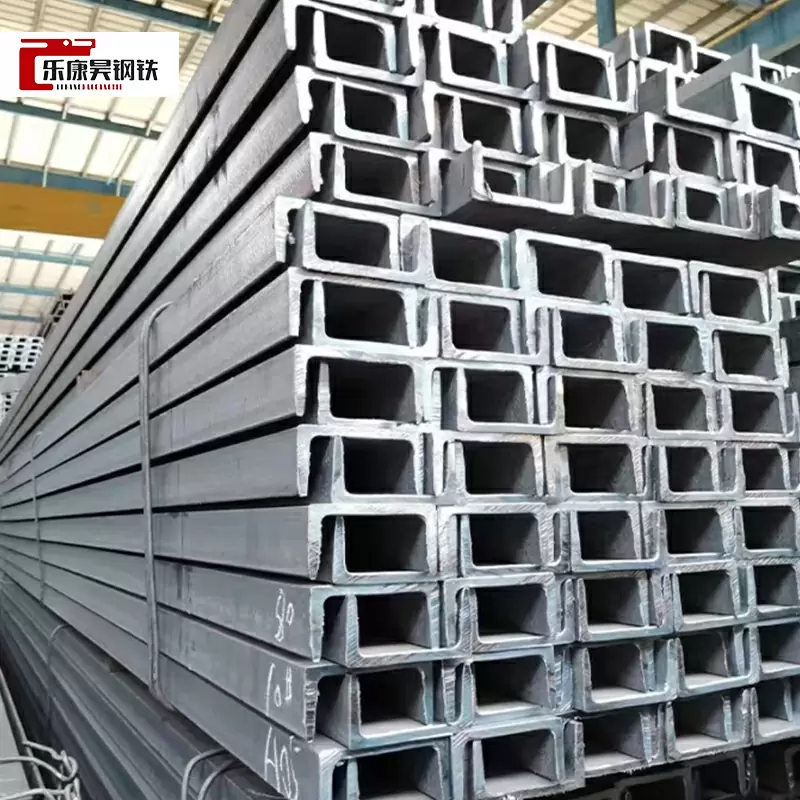

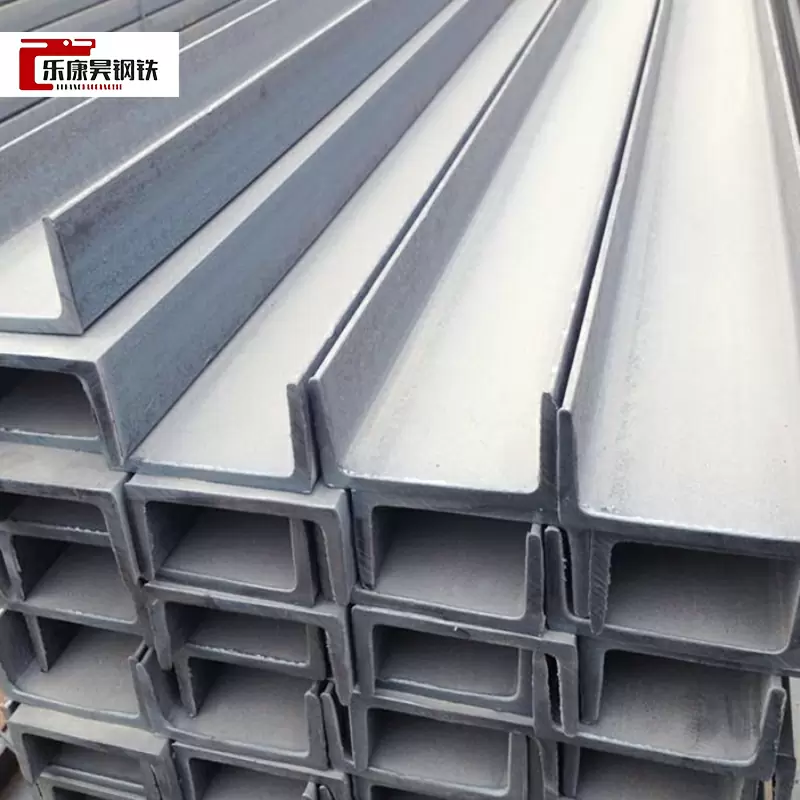

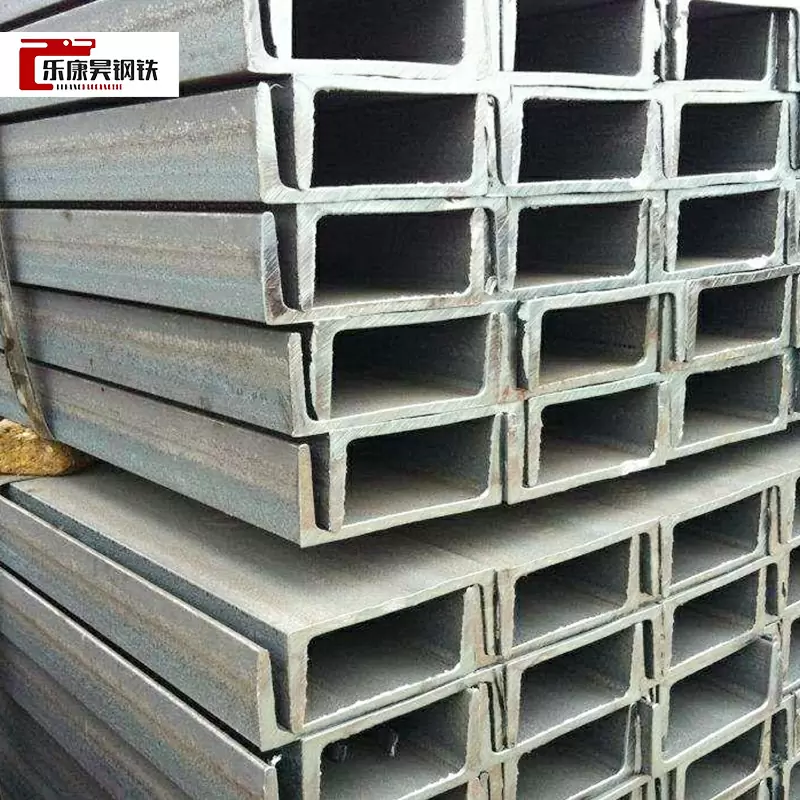

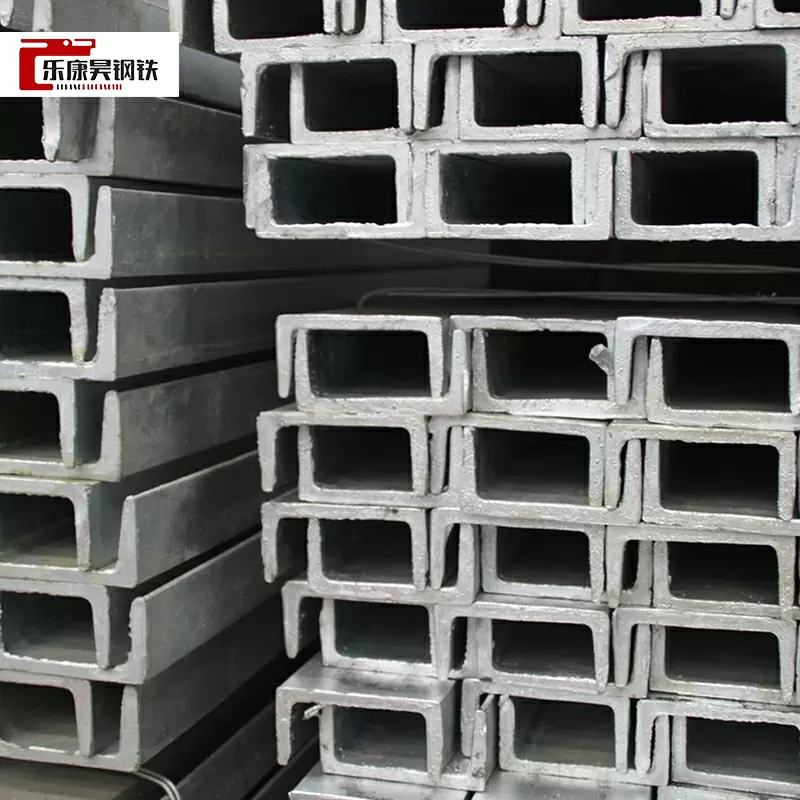

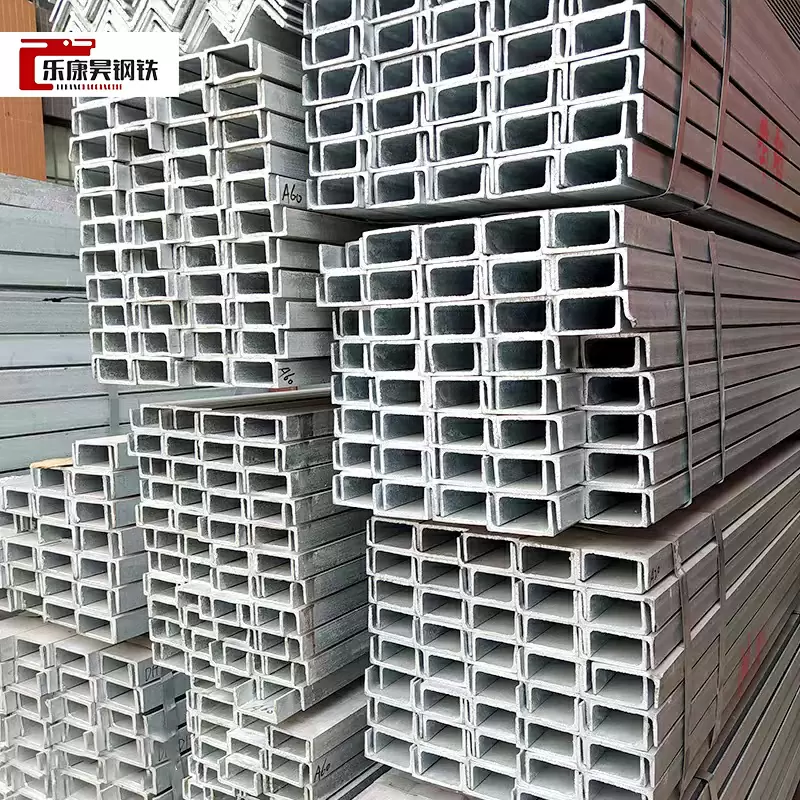

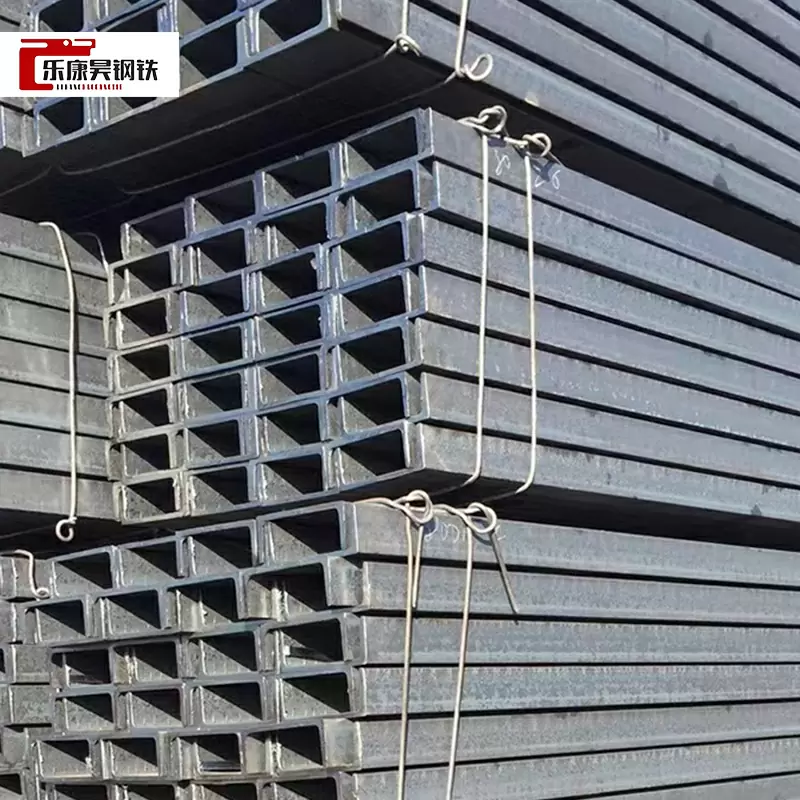

Carbon Steel Channel

Email : steel@lkhsteel-export.com

Whatsapp : +86 13065062808

The company has sufficient inventory and can be picked up at any time.

Contact Us

Chat Now

Product Description

Sizes of Hot Dip Galvanized Profile C Type Steel Channel
Grade	Section Size					Section Square(cm2)	Weight(kg/m2)
Grade	h	b	d	r	rl	Section Square(cm2)	Weight(kg/m2)
5	50	37	4.5	7.0	3.5	6.928	5.438
6.3	63	40	4.8	7.5	3.8	8.451	6.634
6.5	65	40	4.3	7.5	3.8	8.547	6.709
8	80	43	5.0	8.0	4.0	10.248	8.045
10	100	48	5.3	8.5	4.2	45.748	10.007
12	120	53	5.5	9.0	4.5	15.362	12.059
12.6	126	53	5.5	9.0	4.5	15.692	12.318
14a	140	58	6.0	9.5	4.8	18.516	14.53
14b	140	60	8.0	9.5	4.8	21.316	16.733
16a	160	63	6.5	9.5	4.8	21.962	17.240
16b	160	65	8.5	9.5	4.8	25.162	19.752
18a	180	68	7.0	10.5	5.2	25.699	20.174
18b	180	70	9.0	10.5	5.2	29.299	23.000
20a	200	73	7.0	11.0	5.5	28.837	22.637
20b	200	75	9.0	11.0	5.5	32.837	22.637
22a	220	77	7.0	11.5	5.8	31.864	25.777
22b	220	79	9.0	11.5	5.8	36.246	28.453
24a	240	78	7.0	12.0	6.0	34.217	26.860
24b		80	9.0			39.017	30.628
24c		82	11.0			43.817	34.396
25a	250	78	7.0	12.0	6.0	34.917	27.410
25b		80	9.0			39.917	31.335
25c		82	11.0			44.917	35.260
27a	270	82	7.5	12.5	6.2	39.284	30.838
27b		84	9.5			44.684	35.077
27c		86	11.5			50.084	39.316
28a	280	82	7.5	12.5	6.2	40.034	31.427
28b		84	9.5			45.634	35.823
28c		86	11.5			51.634	40.219
30a	300	85	7.5	13.5	6.8	43.902	34.463
30b		87	9.5			49.902	39.173
30c		89	11.5			55.902	43.883
